This was part of a design challenge for ENGR717, Foundations of Engineering Design.

Overview

Team Members: Maggie Byrnes, Joshua Haupt, Micah Jabbour, Jesse Nathenson

During this challenge, we learned how to use arduinos. We created a “useless” machine that eventually culminates in sharpening a pencil.

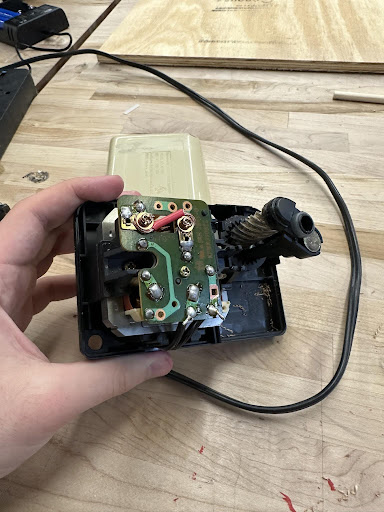

The Sharpener

We rescued the electric pencil sharpener from the basement of Pitt’s engineering building, Benedum Hall. I fixed the electronics inside to get it working again.

Video

Steps

Here were the steps of our machine:

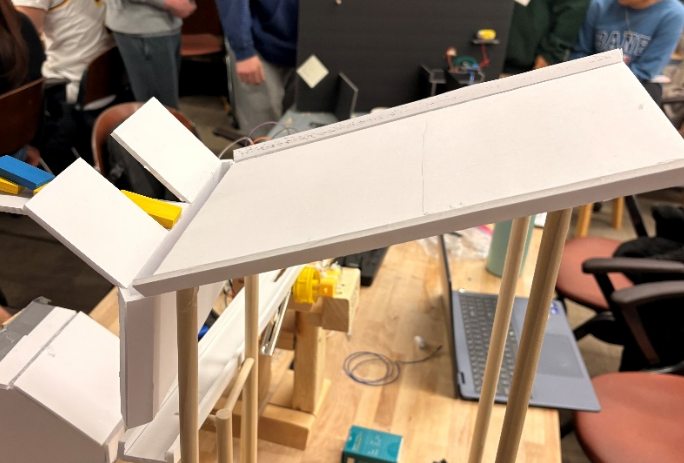

Rolling Pencil

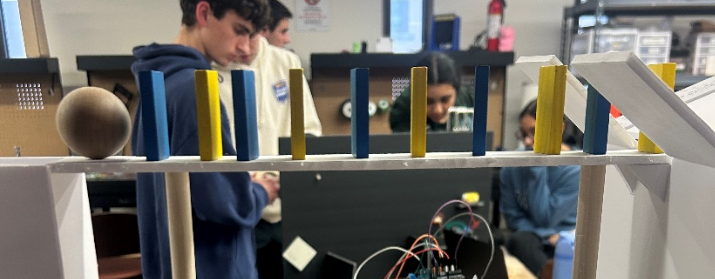

Dominoes

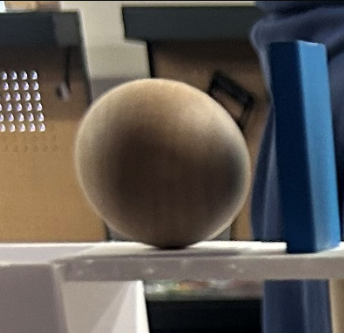

Ball Fall

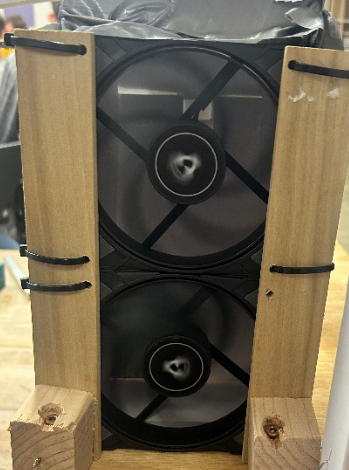

Fans

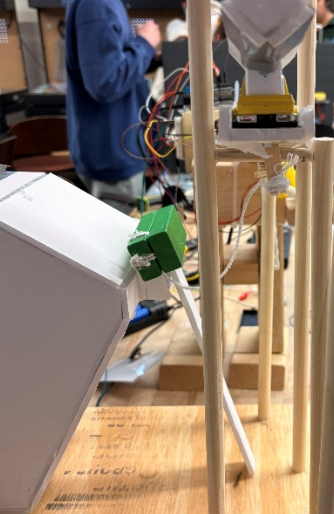

Stopper

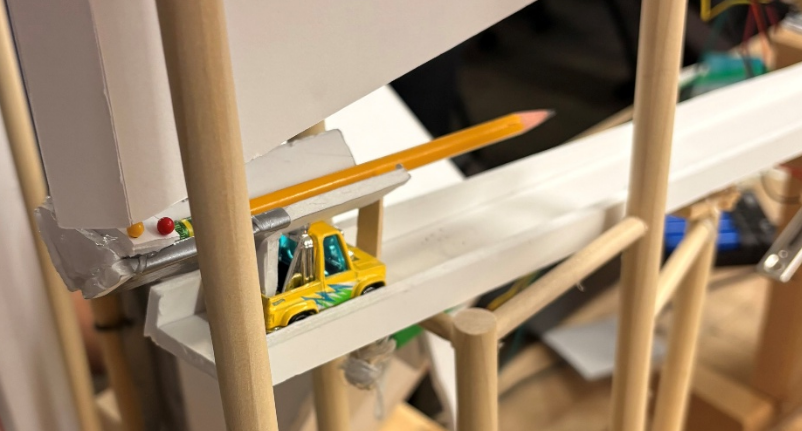

Car
Motor and Linear Actuator
